InvoMilling™ cutting technology will change the gear processing industry

InvoMilling™ cutting technology will change the gear processing industry. Why do you say that? Let's follow the EP editor to understand it!

XNUMX. Description of InvoMilling™:

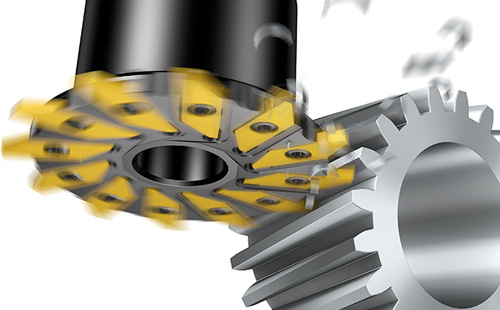

InvoMilling™ is a kind of tool that can process many kinds of tooth shapes by changing the NC program instead of changing the tool.Using a multi-task machine tool or a 5-axis machining center, the entire part can be machined in one clamping.

InvoMilling™ can use standard machine tools to complete gear processing, which can shorten the lead time and significantly shorten the total manufacturing time. It is an external gear,SplineAnd the processing technology of straight bevel gears.

5. Five advantages of InvoMilling™ cutting technology:

1. In multi-task machine tools and 5-axis machining centersMachining gear;

2. The same tool can be used to process a variety of different tooth shapes, with high flexibility;

3. The whole part can be processed in one machine tool through one clamping;

4. It can shorten the lead time and significantly shorten the total manufacturing time;

5. Dry running, no cutting oil is used, and it is more environmentally friendly.

7. Seven application processes of InvoMilling™:

1. Used for processing external gears and external splines, herringbone gears and straight bevel gears;

2. Modulus range: 0.8~100;

3. For small to medium batch production;

4. Tooth surface correction can be used or not used;

5. Used for rough machining to finishing;

6. Short lead time;

7. When there is no need to use special tools or machine tools.
