Mass production, processing and shipment of gears for mask machines!

There are many kinds of gears in the automatic equipment of disposable mask machine, such asCylindrical gear, Sprocket and synchronizing wheel, etc., different gears cooperate with each other. EP has contributed to problems such as the shortage of mask production capacity. At present, more than XNUMX gears have been produced and processed and shipped, and the production will continue to be expanded in the future.

At present, our company mainly produces and processesMask machine gearThe products and the delivery period are also quite full. There are mainly the following 16 popular products for everyone to buy.

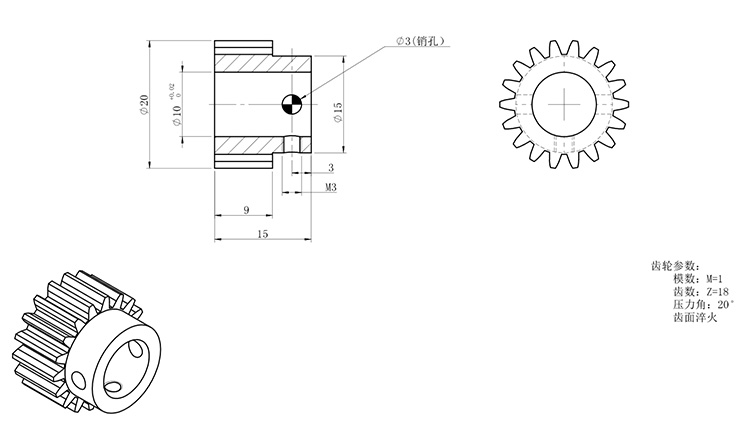

1. M1-18 teeth:

Modulus M=1, tooth number Z=18, pressure angle 20°, 45# steel, tooth surface quenching treatment.

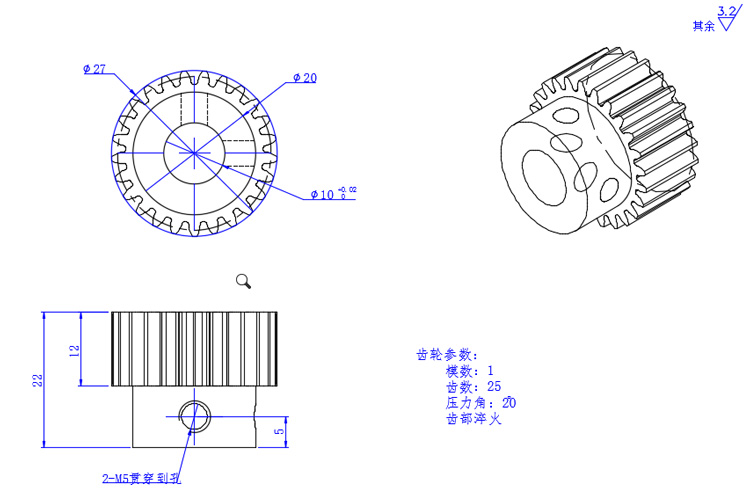

2. M1-25 teeth:

Modulus M=1, tooth number Z=25, pressure angle 20°, 45# steel, tooth part quenching treatment, surface blackening treatment, used for flat face mask small body machine.

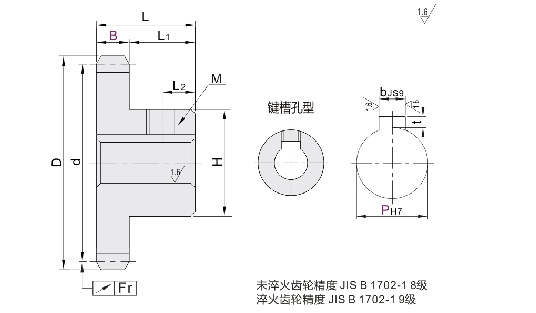

3. M1-40 teeth:

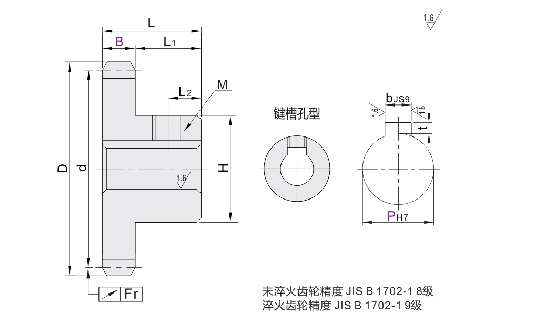

Modulus M=1, tooth number Z=40, 40Cr material processing, tooth surface hardness HRC45-55, surface blackening treatment, unhardened gear accuracy JIS B 1702-1 level 8, and quenched gear accuracy JIS B 1702-1 level 9.

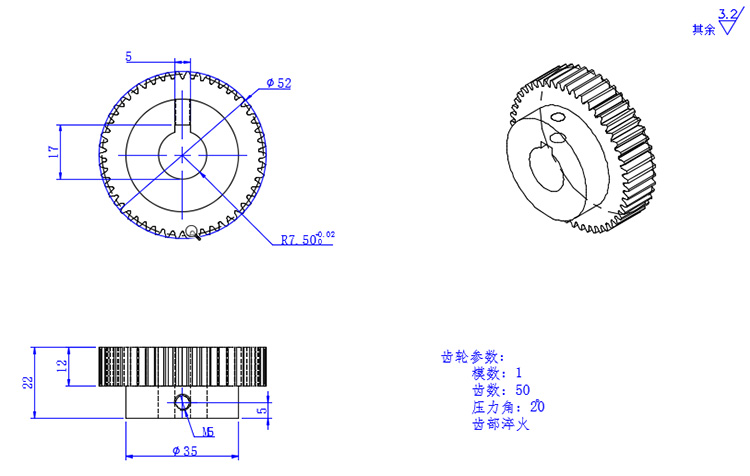

4. M1-50 teeth:

Modulus M=1, tooth number Z=50, 40Cr material processing, tooth surface hardness HRC45-55, surface blackening treatment, unhardened gear accuracy JIS B 1702-1 level 8, and quenched gear accuracy JIS B 1702-1 level 9.

5. M1-50 tooth keyway type B:

Modulus M=1, tooth number Z=50, pressure angle 20°, 45# steel, tooth part quenching treatment, surface blackening treatment, used for flat face mask small body machine.

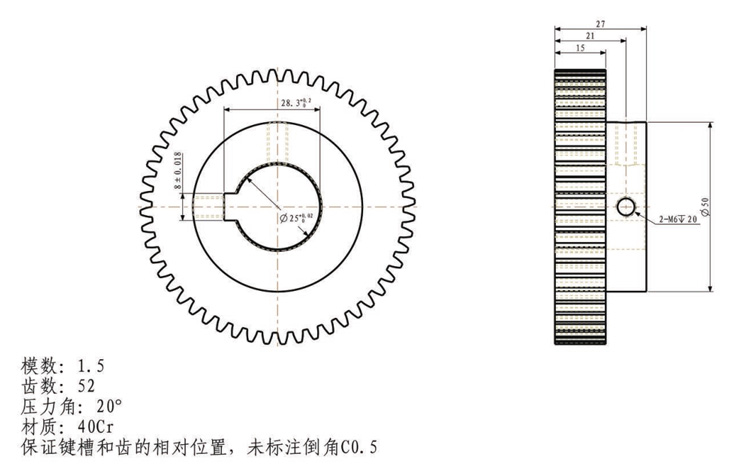

6. M1.5-52 teeth:

The modulus M=1.5, the number of teeth Z=52, the pressure angle is 20°, and the 40Cr material is processed to ensure the relative position of the keyway and the teeth.

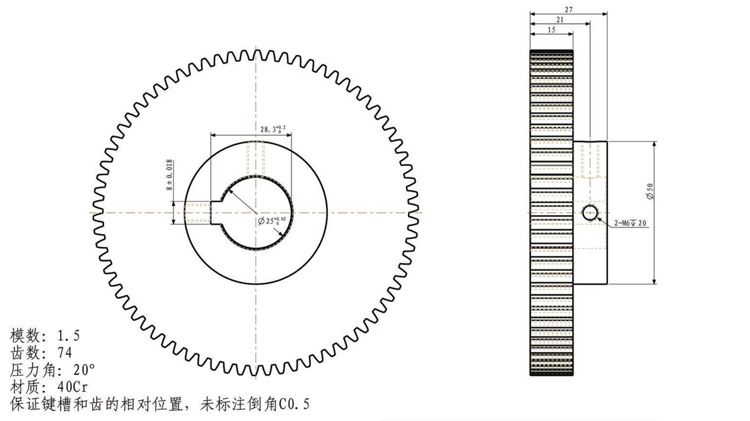

7. M1.5-74 teeth:

The modulus M=1.5, the number of teeth Z=74, the pressure angle is 20°, and the 40Cr material is processed to ensure the relative position of the keyway and the teeth.

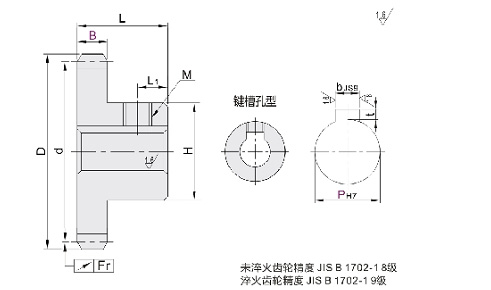

8. M1.5-75 teeth:

Modulus M=1.5, tooth number Z=75, S45C material processing, tooth surface hardness HRC40-45, surface blackening treatment, unhardened gear accuracy JIS B 1702-1 level 8, and quenched gear accuracy JIS B 1702-1 level 9.

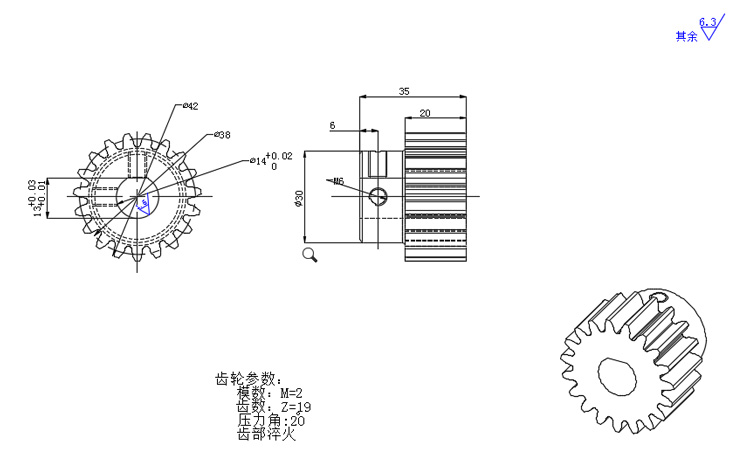

9. M2-19 tooth D-shaped hole:

Modulus M=2, tooth number Z=19, pressure angle 20°, 45# steel, tooth part quenching treatment, surface blackening treatment, used for flat face mask small body machine.

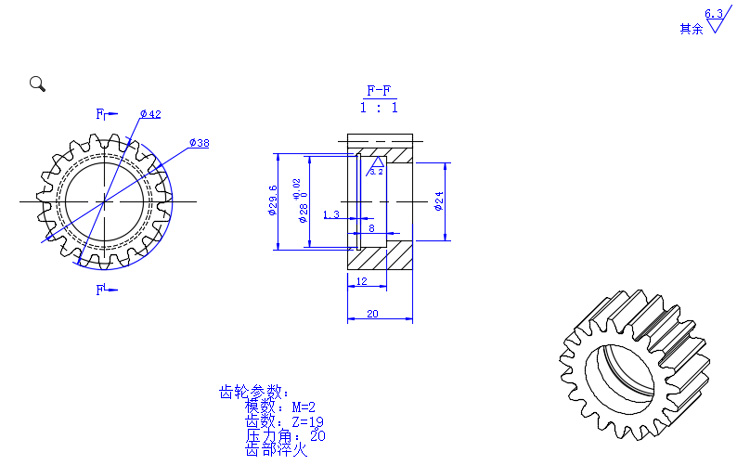

10. Multiple holes of M2-19 teeth:

Modulus M=2, tooth number Z=19, pressure angle 20°, 45# steel, tooth part quenching treatment, surface blackening treatment, used for flat face mask small body machine.

11. M2-20 teeth:

Modulus M=2, number of teeth Z=20, pressure angle 20°, S45C material processing, surface blackening treatment, heat treatment quenching and tempering HB255, driving gear is used in flat ear belt type automatic mask manufacturing equipment.

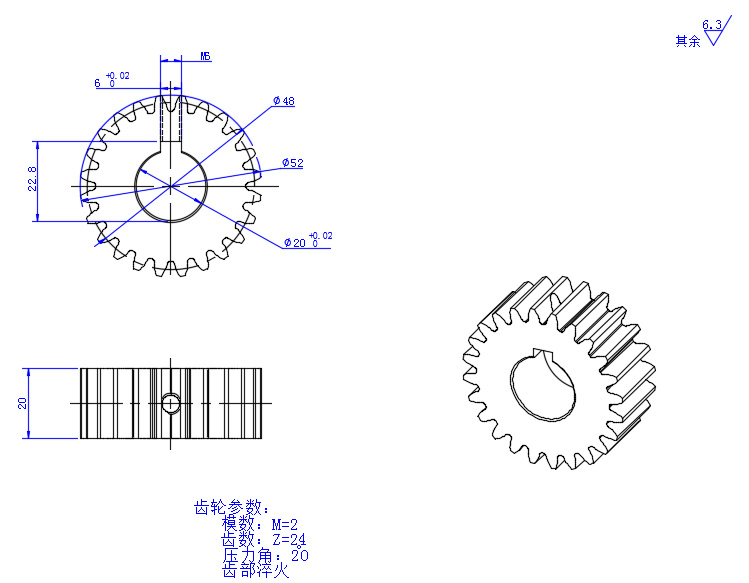

12. M2-24 tooth keyway type A:

Modulus M=2, tooth number Z=24, pressure angle 20°, 45# steel, tooth part quenching treatment, surface blackening treatment, used for flat face mask small body machine.

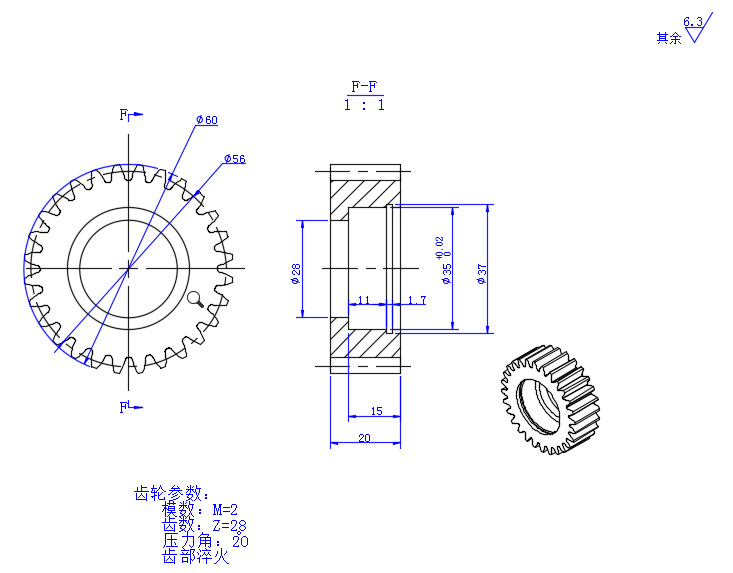

13. M2-28 tooth type A:

Modulus M=2, tooth number Z=28, pressure angle 20°, 45# steel, tooth part quenching treatment, surface blackening treatment, used for flat face mask small body machine.

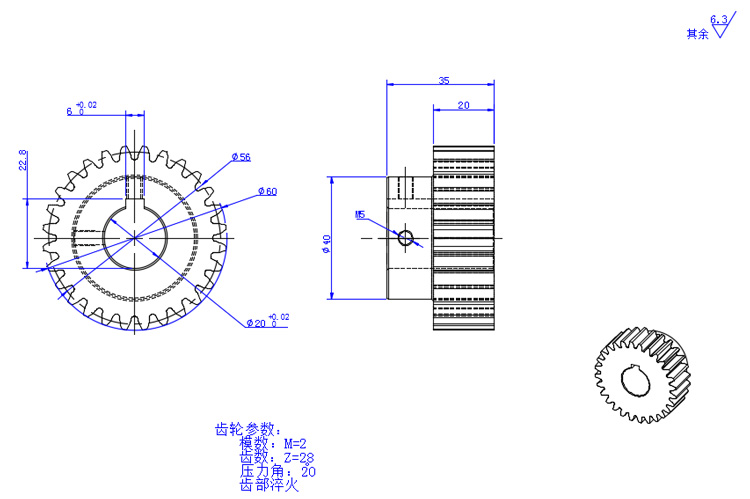

14. M2-28 tooth type B:

Modulus M=2, tooth number Z=28, pressure angle 20°, 45# steel, tooth part quenching treatment, surface blackening treatment, used for flat face mask small body machine.

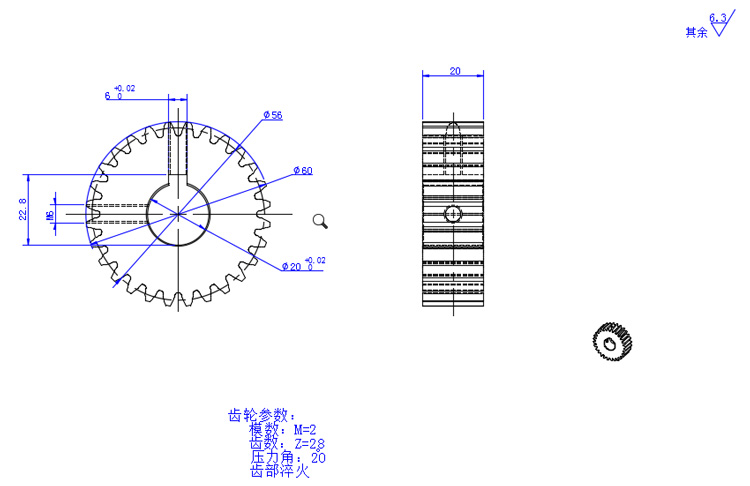

15. Multiple holes of M2-28 teeth:

Modulus M=2, tooth number Z=28, pressure angle 20°, 45# steel, tooth part quenching treatment, surface blackening treatment, used for flat face mask small body machine.

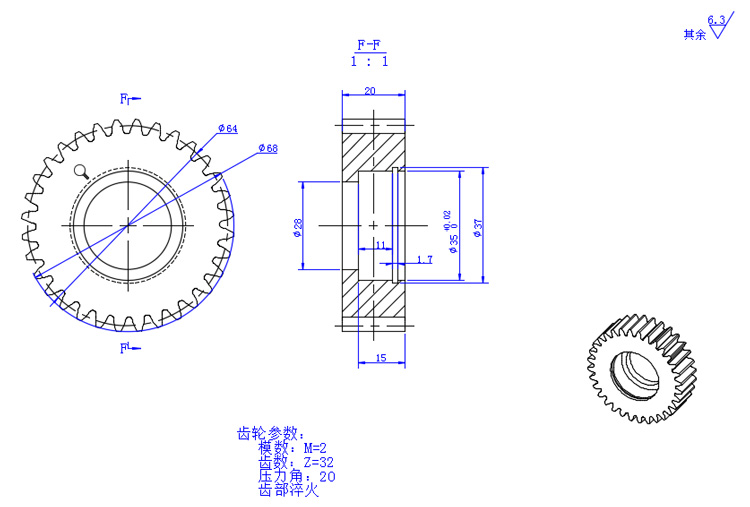

16. Multiple holes of M2-32 teeth:

Modulus M=2, tooth number Z=32, pressure angle 20°, 45# steel, tooth part quenching treatment, surface blackening treatment, used for flat face mask small body machine.

For more information about the gear of the mask machine, such as 3D model drawings, etc., please contact EP Gear processing Free technical consultation, our company can recommend suitable products to you according to your actual application scenarios!
