3 common errors in gear polishing and related descriptions of polishing allowance

The three common errors and polishing allowances related to gear polishing are explained below for reference.

Three common errors in gear polishing processing:

1. Tooth surface burns.

The polishing wheel speed is too high and the pressure is too high, so that the polishing agent is not easy to adhere to the polishing wheel, so that the workpiece and the polishing wheel are rubbed to generate heat and burn the tooth surface.

2. The roughness of the tooth surface is uneven and the tooth surface is defective.

Because the polishing agent is mixed with impurities or improper use, the tooth surface roughness is uneven and defects are generated.

3. Tooth profile error.

The polishing time is too long and the pressure is too high.The polishing allowance is uneven on the tooth surface and other reasons.

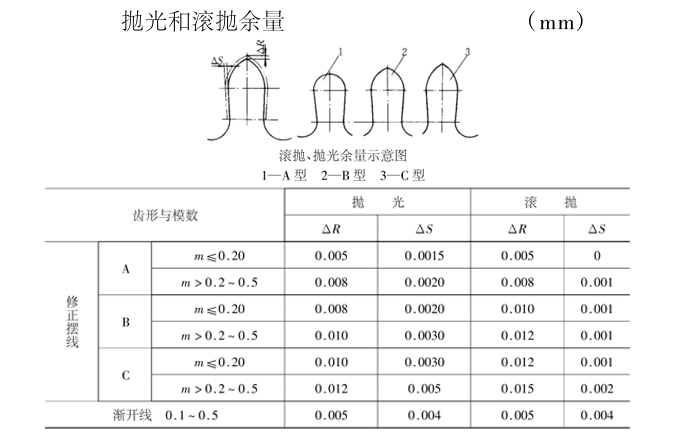

Polishing allowance:

Different tooth profile and modulus choose different polishing and rolling allowances.
