9 factors that need to be considered when choosing a tool for gear processing and product quality requirements

The 9 major factors that need to be considered when selecting a tool for gear processing and the description of product quality requirements are as follows, for reference.

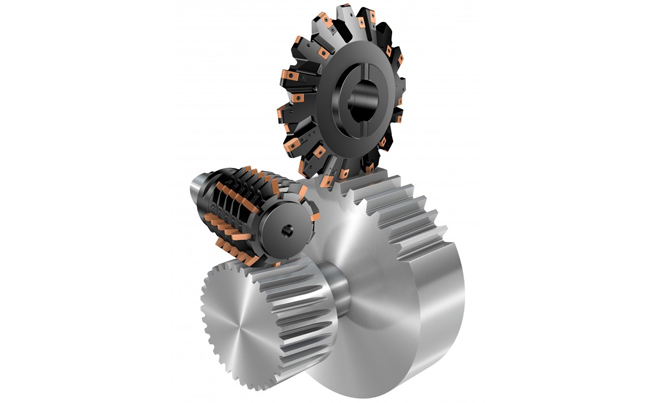

9. XNUMX factors that need to be considered when selecting gear milling cutters:

1. Gear quality requirements

2. Modular size

3. Helix angle

4. Pressure angle

5. Tooth tip and tooth root diameter

6. Modification coefficient

7. Gear tooth profile (with root cleaning, tooth tip modification or tooth tip chamfering)

8. Interface type and size

9. Possible tool diameter range (minimum-maximum)

The size and shape of the tooth groove must be exactly matched with the tool. In other words, the profile of the gear tool usually needs to be customized according to the specific gear.

XNUMX. The quality assurance of gear processing needs to grasp the following requirements:

1. Accurate and stable machine tool

2. High-quality tools

3. Stable clamping

4. The amount of runout on the tool and workpiece should be reduced as much as possible

5. Clean contact surface

The above description of the selection factors of gear processing tools and product quality assurance requirements, including but not limited to,Gear processingWhen customizing, you need to provide all necessary information. It is best to have a complete product drawing. If you have any unclear points or related requirements, you can ask the EP technician for help.
