Description of dimensional accuracy of injection gear (for reference)

The description of the dimensional accuracy of the injection gear is for reference.

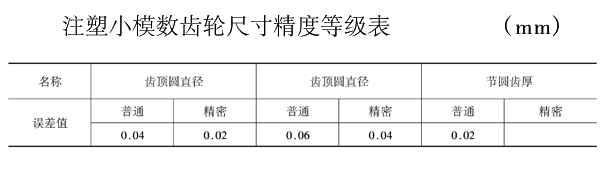

The dimensional accuracy of injection gears is different due to different process methods and plastics. The accuracy grades and dimensional tolerances are shown in the figure below.

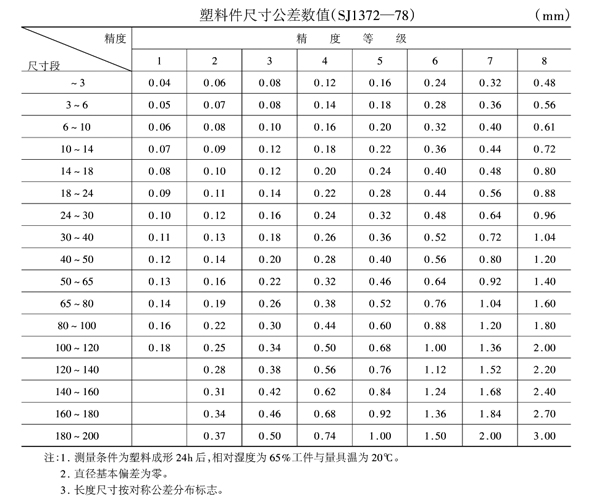

Other dimensions of injection molded parts can be divided into eight levels.The accuracy and the tolerance values ​​of each size segment are shown in the figure below.

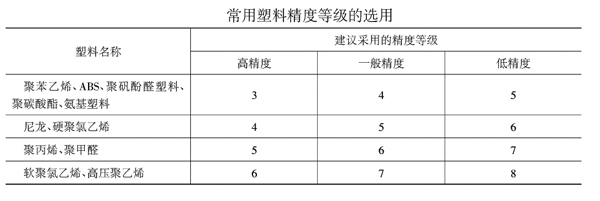

The accuracy grades that can be achieved by other dimensions of injection molded parts are shown in the figure below.
