Gear accuracy grade, you have to be clear about these places!

The gears have 13 accuracy levels, arranged in the order of numbers 0-12 from low to high, with level 0 being the highest and level 12 being the lowest.Gear accuracy refers to thegearA grade divided by the comprehensive error of the shape, which includes some important parameters such as tooth profile, tooth direction, and radial jump.

1. Tooth shape: refers to the radial shape of the tooth.

2. Tooth direction: refers to the longitudinal shape of the tooth.

3. Radial jump: refers to the error of the distance between two adjacent teeth.

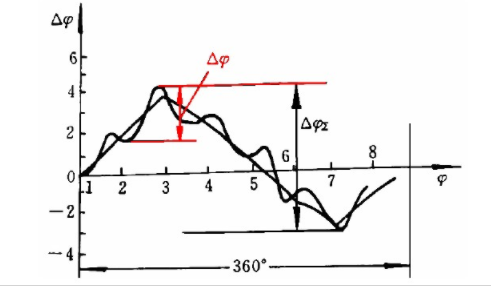

Gear accuracy is mainly to control the accuracy of transmission between gears during operation, such as: smoothness of transmission, fluctuation of instantaneous speed, if there is alternating reverse operation, whether the backlash of the tooth is minimized, and if there is an impact load , The accuracy should be slightly improved to reduce the damage to the gear caused by the impact load.

The choice of gear accuracy grade should be determined according to the purpose of the transmission, use conditions, transmission power, peripheral speed, performance indicators or other technical requirements.

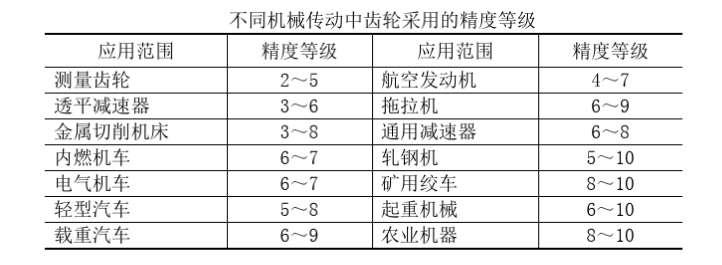

The recommended precision grades of gears for different mechanical transmissions are explained as follows, for reference only. For specific product selection, please consult EP for free.

The difference in the processing technology used in gear products of different precision grades:

1. Accuracy class DIN6: quenching and tempering/tooth surface high-frequency quenching/tooth surface grinding/four-side grinding

2. Accuracy class DIN7: quenching and tempering/finishing tooth surface milling/four-side grinding

3. Accuracy class DIN8: quenching and tempering/tooth surface finish milling/four-side finish milling

4. Accuracy class DIN9: quenching and tempering/tooth surface high-frequency quenching/tooth surface finishing milling/four-sided grinding

5. Accuracy class DIN10: quenching and tempering/tooth surface high-frequency quenching/tooth surface finishing milling/four-side finishing milling

Ever-Power Transmission-is a customized brand with 10 years + precision gear processing, and its products includeSpur gear, Helical gears, gear shafts, etc., complete models and specifications.Regarding the gear accuracy grade, if you have any questions, please click the consultation window on the right for free consultation.
