Small module gear related instructions

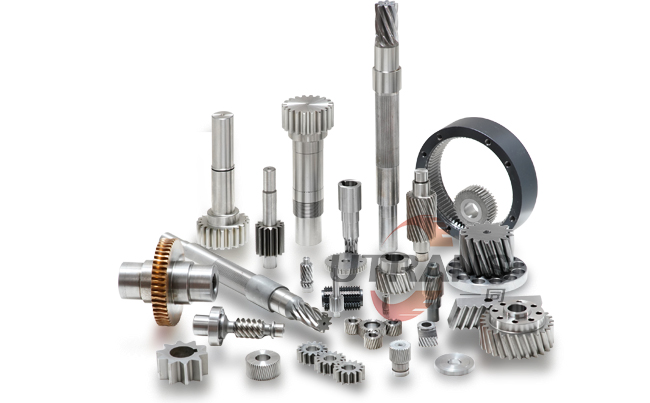

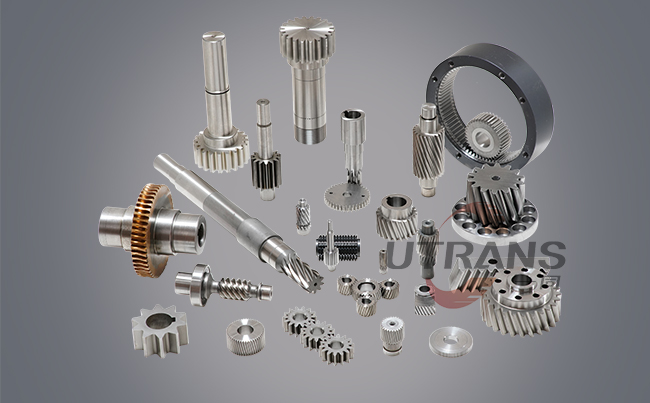

Small module gear, Ever-Power can process gear products with a module number of 0.3~15, precision grade DIN5-9 precision, size 0-1000mm.Among them, those with a modulus less than 1mm are small modulus gear products.

In general, the smaller the gear modulus, the lower and thinner the gear teeth, and the higher the transmission accuracy. EP Precision small module gear processing 提供产品免费选型，专业定制。常用的模数有0.3/0.35/0.4/0.45/0.5/0.527/0.6/0.7/0.75/0.8/1，产品选型需提供模数、齿数、齿顶、内孔、高度、公法线、跨齿数及变位等参数要求，不清楚的可直接向EP 免费咨询。

Precision small modulus gear products are key parts of precision machinery, electronic products, smart homes, instrumentation, aviation machinery, service robots and other equipment. In the future, intelligent, small modulus gear products will be more widely used, and at the same time for products The precision requirements will be higher.

Product classification of small modulus gears:

1. According to the mutual position of the transmission shafts, it can be divided into:

a, parallel shaft gear transmission such asCylindrical spur gear, Helical gears, straight racks, helical racks, etc.

b. Intersecting shaft gear drives such as straight bevel gears, circular arc gears, etc.

c. Cross-shaft gear transmission such as helical gears, worm gears and so on.

2. According to the principle of meshing, it can be divided into:

a. Involute gear transmission, including involute gear transmission for timing instruments.

b. Cycloidal gear transmission, including various modified cycloidal gear transmissions.

3. According to the purpose, it can be divided into:

a. The adjustment and correction mechanism is driven by gears.

b. The timing control mechanism is driven by gears.

c. Gear transmission is used for indexing and reading.

d. Servo mechanism uses gear transmission, etc.

The above is the description of small module gears, including but not limited to. EP-Precision gearFor design and processing, the company adopts imported precision processing equipment for processing and perfect quality management. Each process is strictly controlled and finely tested to ensure the processing accuracy of the finished gear.If you have more questions or related needs, you can click the consultation window on the right to consult the technical staff for free.
